Rigmah®-L

Rigmah®-Lsafety laminated glass

What is Rigmah®-L safety laminated glass?

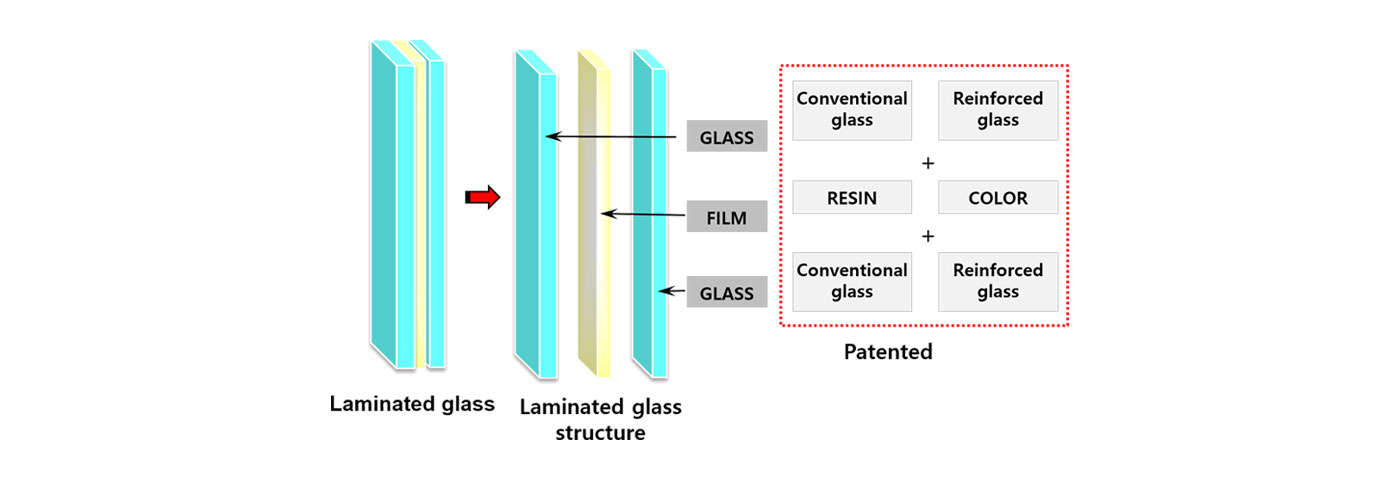

  • Glass made by inserting polymer material (PVB, EVA, resin) between two glass plates and hardening it with heat and pressure
  • Used for automobile windshields by regulation as it has excellent shock absorption performance and generates no debris even when broken
  • Not widely used in the architectural market because the price is 5-10 times higher than that of conventional glass
  • Expected increase in demand following the legal amendment in 2015 to allow replacement of metal railing in external balconies with non-flammable material (safety laminated glass)

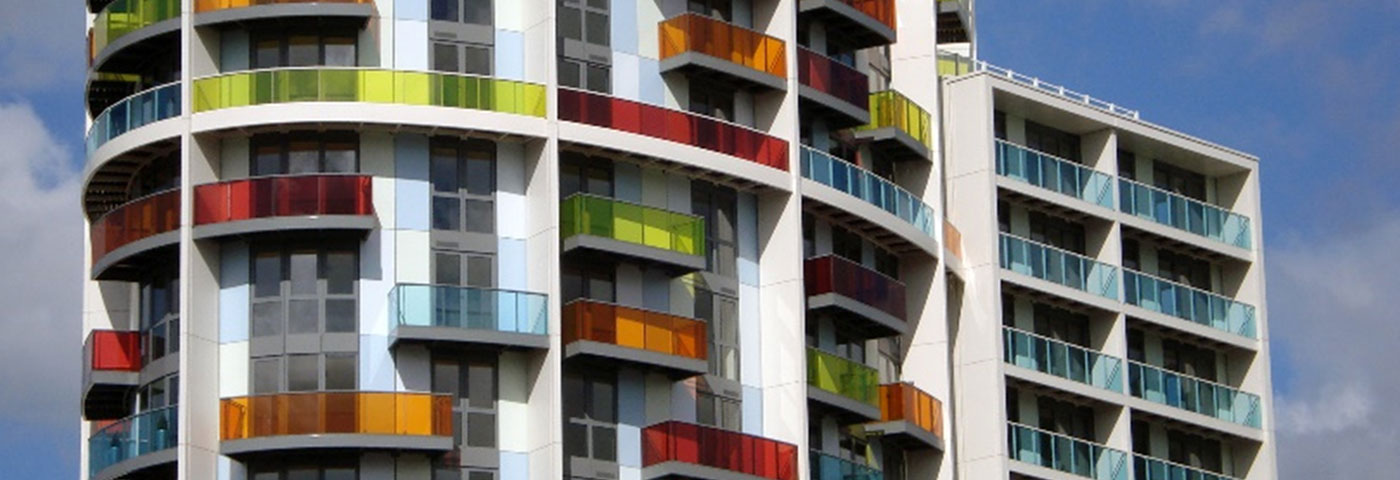

Case of railing made of color laminated glass in other countries (ICONA in the UK)

Features of Rigmah®-L safety laminated glass (4S)

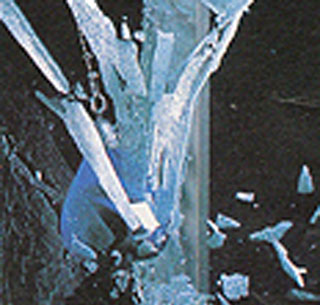

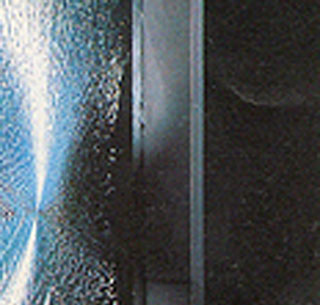

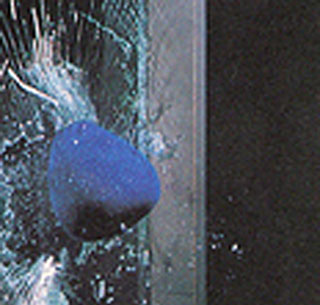

Safety(Safety)
  • It is safe as fragments are not scattered when the glass is broken by external impact.

  • Conventional glass

  • Reinforced glass

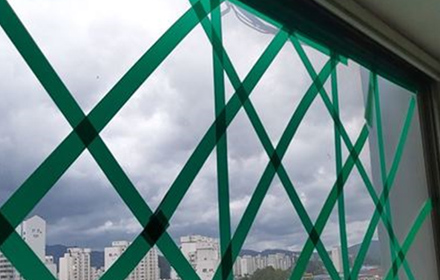

  • Glass with surface-attached film

  • Laminated glass
Security(Security)
  • The glass protects from external attacks, vandalism, and property infringement.

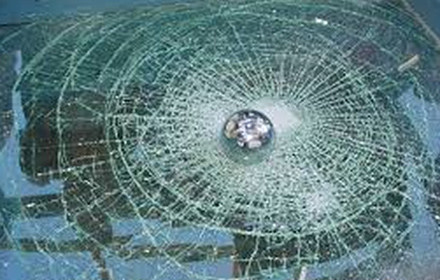

  • No damage from the KS L 2004 Falling Ball Impact Test (1.04 kg steel ball is dropped 6 times from a height of 1.2 m)
UV Control(Solar Control)
  • The glass protects skins and prevents discoloration of furniture by blocking more than 99% of UV.
Noise Isolation Functions(Security)
  • The glass provides a comfortable residential environment by absorbing external noise with an intermediate film.
  • 30% better noise-blocking than conventional glass (25db, KS F 2808 Test measurement)

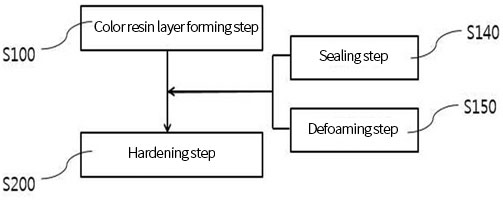

Rigmah®-L manufacturing PROCESS

  • Loading
  • Cleaning
  • Sealing(Screen Print)
  • Grouting
  • Curing
  • Inspection
  • Un-Loading
Fast delivery: 5 days after order of standard color (7 days after order of custom color)

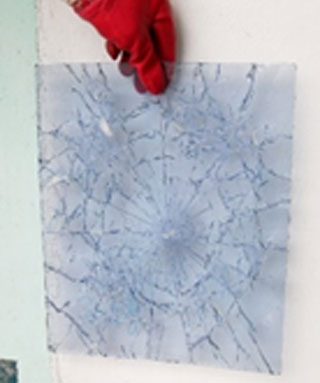

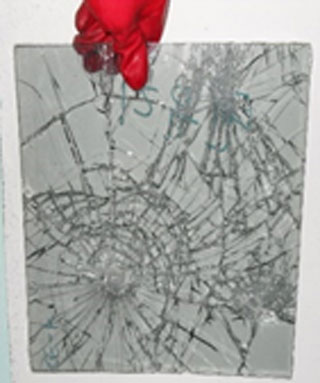

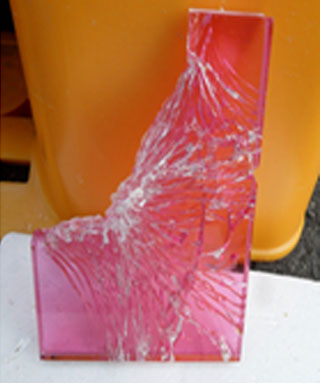

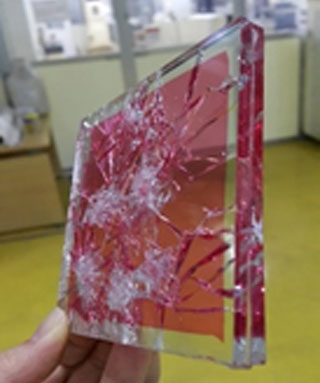

Photo of Rigmah®-L impact test

Rigmah®-L production specifications

Product Name Thickness Maximum Size
Rigmah®-L 7mm(3+3), 9mm(4+4), 11mm(5+5), 13mm(6+6), 17mm(8+8) 1,500 X 3,048mm

LIGHT AND SOLAR DATA

Color name Code LIGHT SOLAR
Tv(%) Rv(%) Av(%) Tv(%) Rv(%) Av(%) SHGC
CORALRED RO100-100 80.8 5.9 5.8 81.2 6.3 6.2 0.748
GREEN GO100-100 82.0 6.5 6.5 82.8 6.5 6.4 0.731
BLUE BO100-100 47.3 5.6 5.1 59.6 6.3 5.9 0.661
YELLOW YO100-100 77.3 5.6 5.1 79.6 6.3 5.9 0.766
BLACK KO100-100 49.0 6.5 6.4 57.3 6.3 6.1 0.587
VIOLET RB70-100 79.8 6.5 6.4 80.4 6.5 6.3 0.853
ORANGE RY55-100 81.0 6.4 6.4 81.8 6.6 6.5 0.861
CYAN BG50-100 68.9 6.0 5.9 62.2 6.3 6.3 0.731
YELLOW GREEN YG50-100 80.5 6.3 6.0 80.8 6.3 6.2 0.853
NAVY RB50-100 58.9 6.0 5.9 62.2 6.3 6.3 0.731

Sample Photo

Proposal of Rigmah®-L (laminated) glass for interior materials

Type 1st generation Reinforced glass 2nd generation Transparent laminated glass 3rd generation Color laminated glass
Name Reinforced glass 10T Laminated safety glass 10T Rigmah®-L 11T Color safety laminated glass
Detailed Specifications
  • -10C: 10 mm transparent glass (reinforced)
  • -5C: 5 mm transparent glass
  • -0.38F: 0.38 mm transparent laminated
  • -5C: 5 mm transparent glass
  • -5C: 5 mm transparent glass
  • -1.0F: 1.0 mm color laminated
  • -5C: 5 mm transparent glass

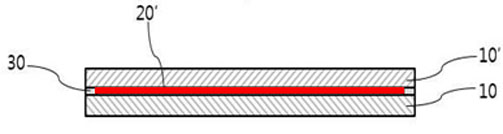

Cross-section details
Transmittance 86 86 30~80
Features
  • - Low cost
  • - Simple color
  • - Possibility of self-damage
  • - Secondary damage by scattered fragments when broken
  • - Safe since there are no scattered fragments when broken
  • - Simple color
  • - Limited design application
  • - Safe since there are no scattered fragments when broken
  • - Full color and adjustable transmittance
  • - Easy design application

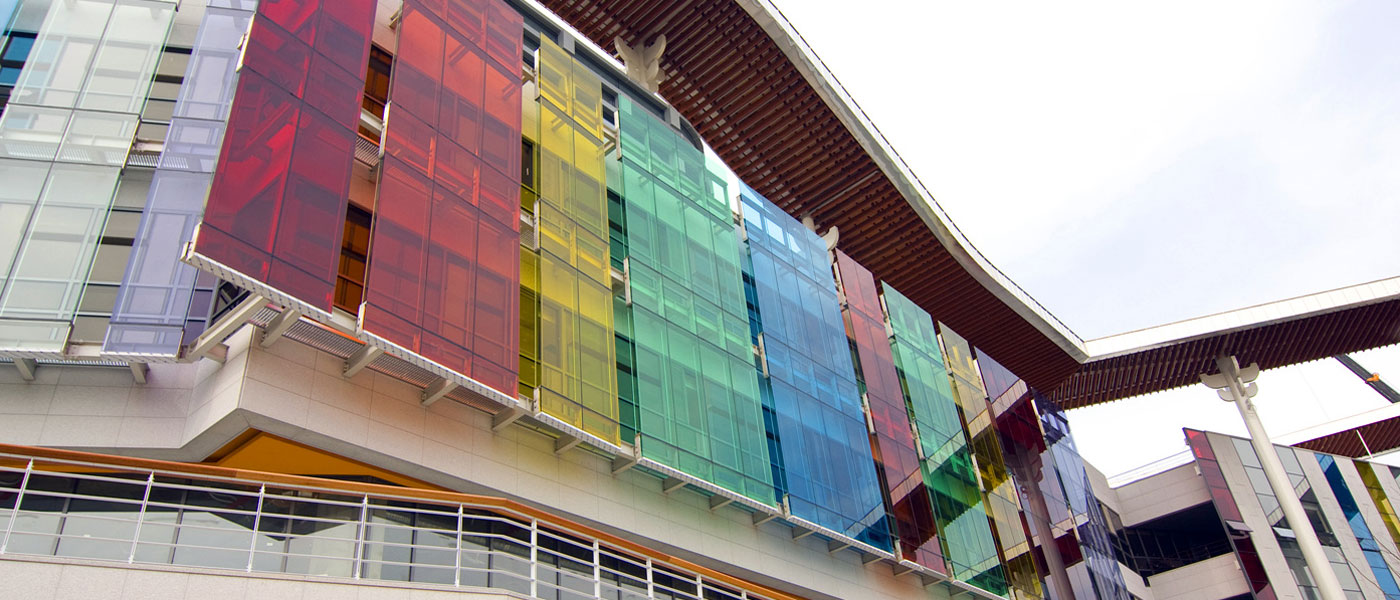

Korea Traditional Culture Center in Jeonju

17.52 mm transparent color laminated glass
glass type performance
8C + 1.52p + 8RC Visible light Transmittance(%) 55
Visible light Reflectance(%) 9
U-Value(W/m2K) 1.7
Shading Coefficient 0.6

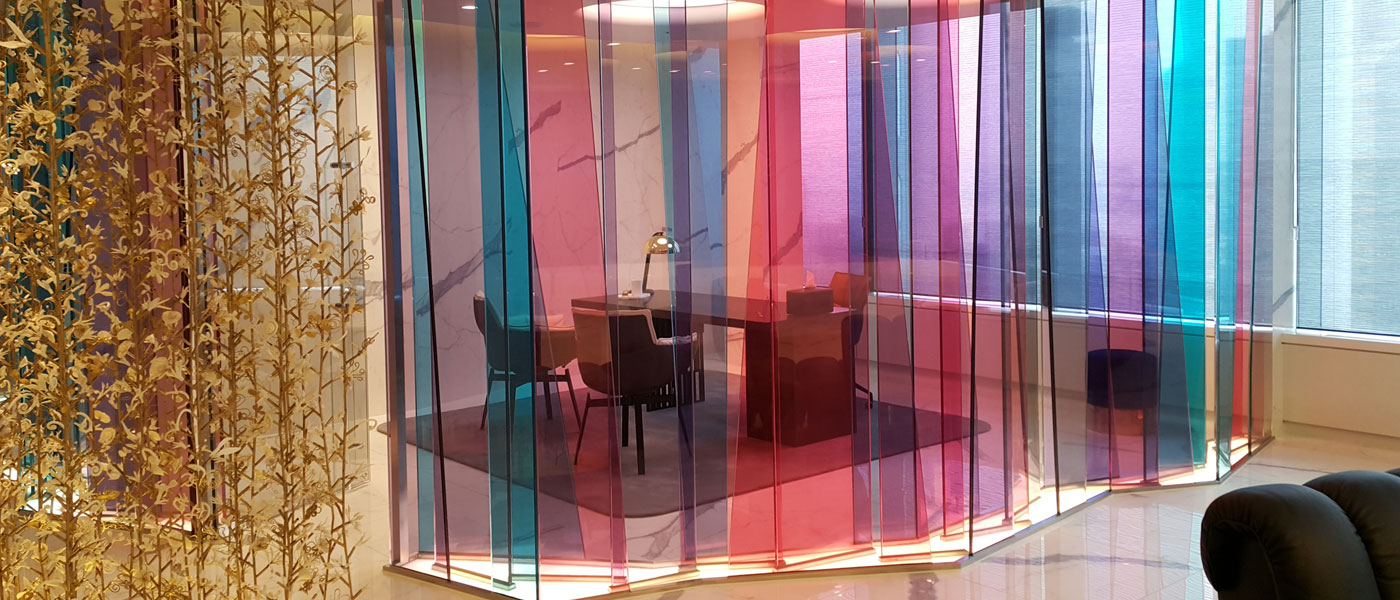

Residence Showroom on 20th FL of Lotte World Tower

17.52 mm transparent color laminated glass
glass type performance
8C + 1.52pvb + 8RC Visible light Transmittance(%) 55~68
Visible light Reflectance(%) 7.6
U-Value(W/m2K) 5.8
Shading Coefficient 0.5~0.7

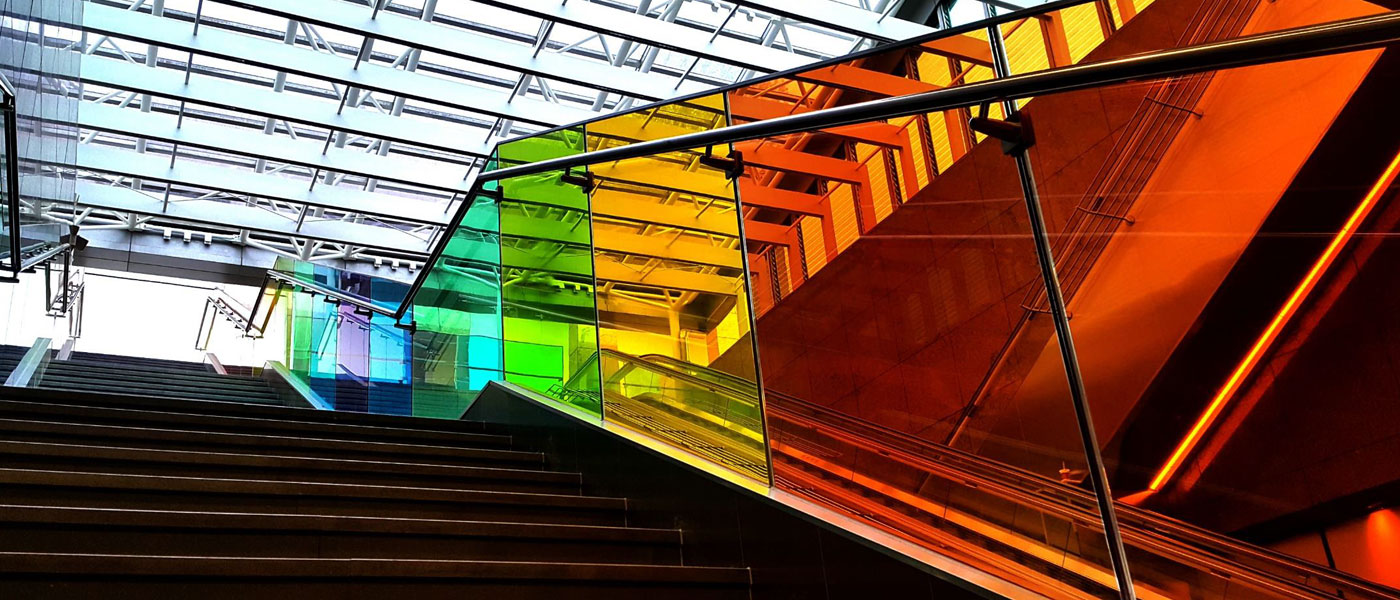

Shinsegae Department Store Gangnam

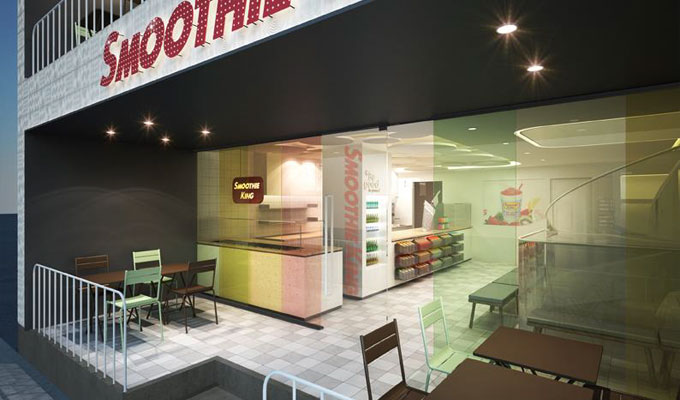

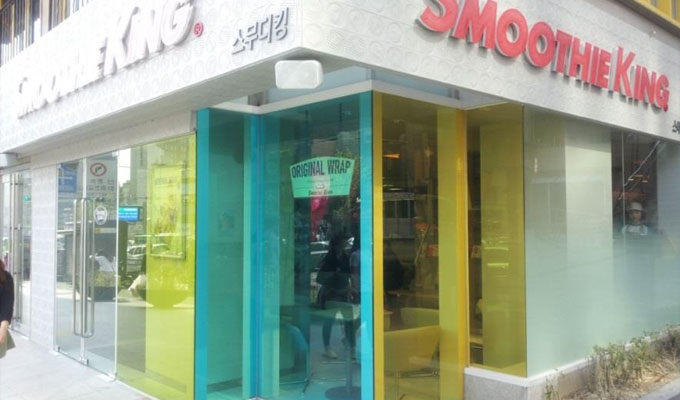

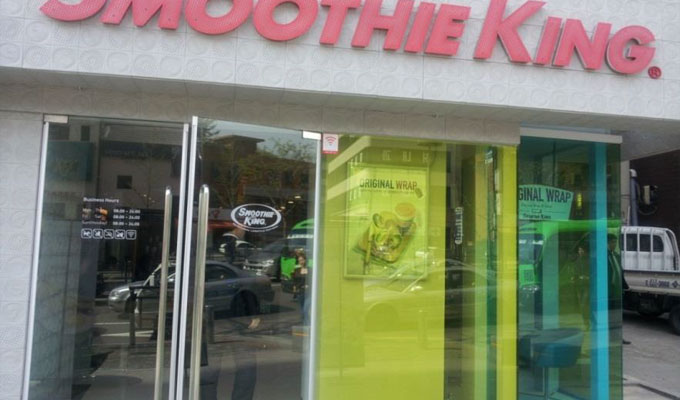

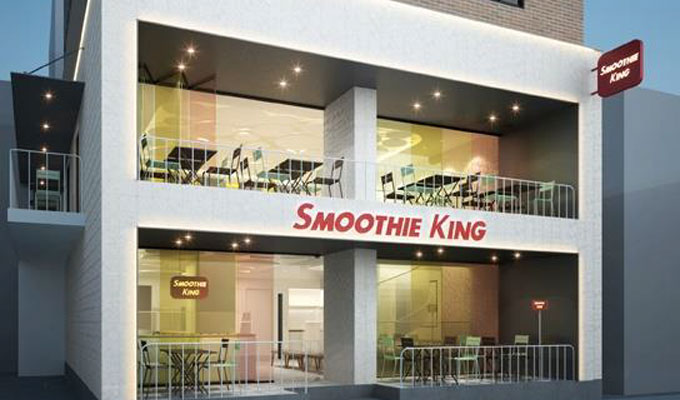

Smoothie King in Shinchon

10.76mm transparent color laminated glass
glass type performance
5C + 0.76pvb + 5RC Visible light Transmittance(%) 50
Visible light Reflectance(%) 8
U-Value(W/m2K) 5.8
Shading Coefficient 0.5
